Shibaura Machines

With our decades of experience in plastics machinery segment, we help hundreds of companies around the world to mold products with precision & speed, offering very high quality of output.With Shibaura Machine factories spread across Japan, China, Thailand and India, we offer competitive products and services to our clients that would equip them with a leading edge in the market place. Our comprehensive service network and application knowledge across segments help clients to choose the right product for their requirement and would optimize the production with a very high up-time. More Details

Vertical Boring & Turn Mill Centers

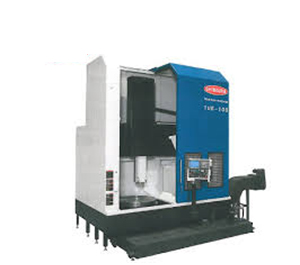

TUE-100

TUE-150

Main Specification(Standard)		TUE-100	TUE-150	TUE-200
Table Diameter	mm	1 016	1 450	2 000
Max. Swing	mm	1 200	2 00	2 400
Max. Cutting Height	mm	850	1 550	1 550
Max. Table Loading Capacity	Kg	2 000	8 000	15 000
Live Spindle Function		OP

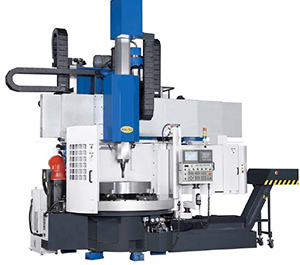

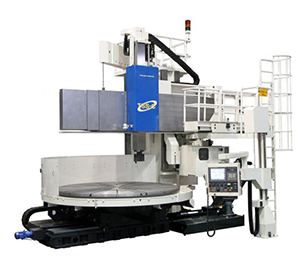

TSS-30/55c

Main Specification(Standard)		TSS-20/40c	TSS-30/55C	TSS-40/67C
Table Diameter	mm	2 000	3 000	4 000
Max. Swing	mm	4 000	5 500	6 700
Max. Cutting Height	mm	1 800[2 200, 2600]
Max. Table Loading Capacity	kg	2 0000
Live Spindle Function		OP

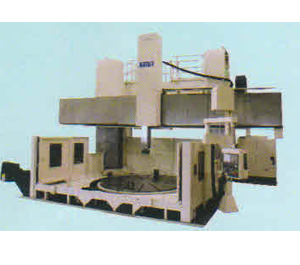

TDS-30/40

Main Specification(Standard)		TSS-30/40	TDS-40/50
Table Diameter	mm	3 000	4 000
Max. Swing	mm	4 000	5 500
Max. Cutting Height	mm	2 500	2 750
Max. Table Loading Capacity	kg	30 000
Live Spindle Function		OP

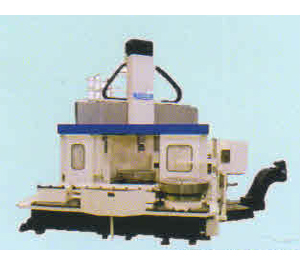

TUD-13(APC)

Main Specification(Standard)		TUD-13	TUD-16	TUD-20
Table Diameter	mm	1 250	1 600	2 000
Max. Swing	mm	1 600	2 000	2 500
Max. Cutting Height	mm	1 100	1 350	1 600
Max. Table Loading Capacity	kg	8 000	10 000	15 000
Live Spindle Function		OP[TMD Series]

Table-Type Horizontal Boring

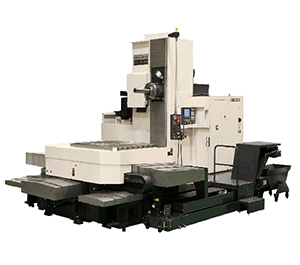

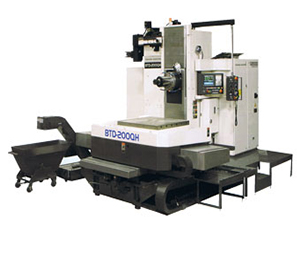

BTD-200QH

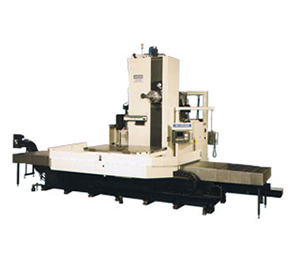

BTD-110H.R16

BTD-130.R22

Solid And Right Iron Table

Main Specification			BTH-110.R18	BTH-130.R24	BP-130.R22	BP-150.R22
Table Working Surface		mm	1 400 X 1 800	2 00 X 2 400	1 800 X 2 200
Table Loading Capacity		kg	10 000	20 000	10 000 [20 000]
Axis Travel	X	mm	2 500	3 000	4 00
	Y	mm	2 000	2 3000	2 500 [3 000]
	Z	mm	1 500	1 500	1 500
	W	mm	500	700	700
Spindle Speed		min	6~4 000	5~2 500	5~2 500 [40~8 000
Spindle Diameter		mm	110	130	130	150

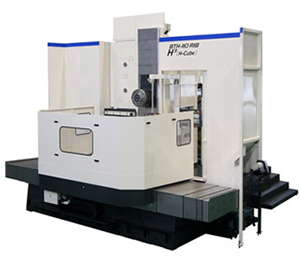

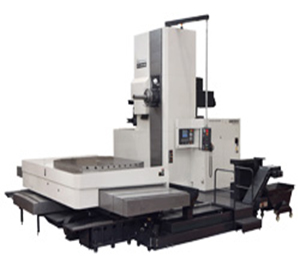

BTH-110.R18

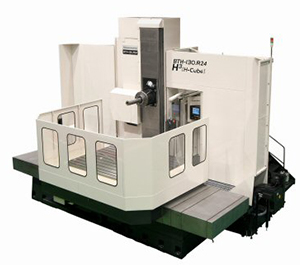

BTH-130.R24

BP-130.R22

Main Specifications			BTD-100.R10	BTD-200QH	BTD-110H.R16	BTD-130H.R22
Table Working Surface		mm	900 X 950	1 000 X 1 200	1 400 X 1600	1 800 X 2 200
Table loading capacity		kg	2 500	4 000	6 300	12 000
Axis travel	X	mm	1 000	1 500	2 000	3 000
	Y	mm	9 00	1 200	1 500	2 300
	Z	mm	700	700	1 450	1 600
	W	mm	350	400	500	700
Spindle Speed		min ^-1	20~3 00 [30~5 000]	20~3 000 [15~5 000]	5~3 000 [40~8 000]	5~2 500 [40~8 000]
Spindle Diameter		mm	100	200(Quill)	110	130

Floor-Type Horizontal Milling & Boring Machines

BF-130B/150B

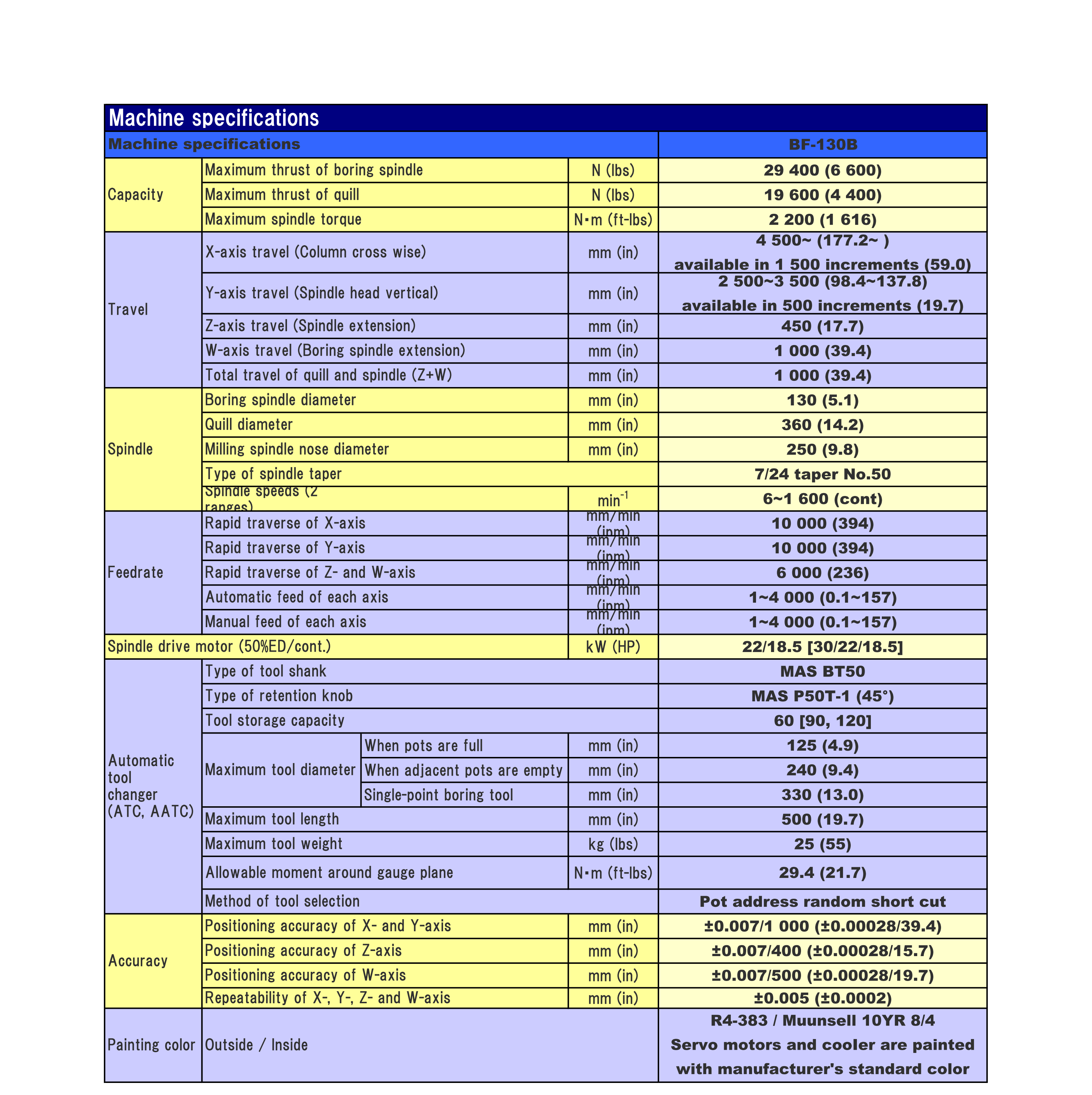

Machine specifications (GIF/514KB)

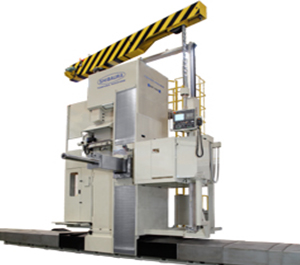

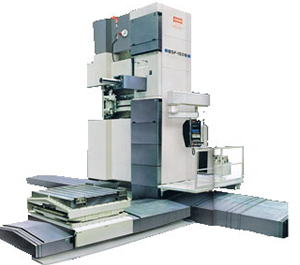

BSF-150C

A floor-type horizontal milling and boring machine with square ram type spindle head and many attachments are available for improving machining efficiency.

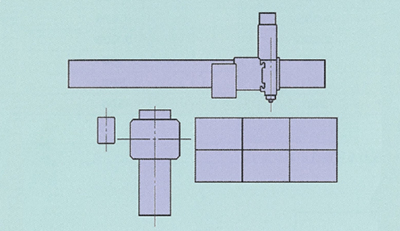

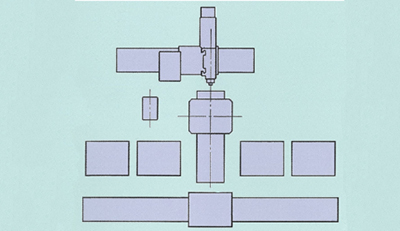

Versatile Floorplates Layout

Combined layout of Floorplates and Rotary

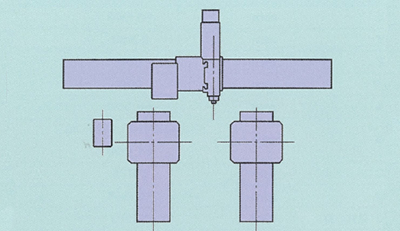

Combined layout of two sets of rotary

Layout with Rotary Table equipped

Double Column Machining Center

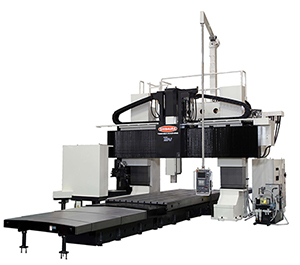

MPJ-2650

Main Specification(Standard)		MPJ
X-axis travel	mm	4 200-6 200
Y-axis travel	mm	3 200-4 200
Z-axis travel	mm	800
W-axis travel (Crossrail movement)	mm	1 000 [1 500]
Height	mm	1 000[1 500]
Distance between both side of frame	mm	2 600 X 4 000 3100 X 600
Maximum load on table	kg	20 000-33 000
Spindle Speed Range	min^-1	30 - 4 000 [6 000]

MPJ-2640M

Main Specification(Standard)		MPJ-M
X-axis travel	mm	4 500-6 500
Y-axis travel	mm	3 000-3 500
Z-axis travel	mm	800
W-axis travel (Crossrail movement)	mm	1 000 [1 500]
Height	mm	1 730 [2 235]
Distance between both side of frame	mm	2 600 - 3 100
Table Working Surface	kg	2 00 X 4 000
Maximum load on table	kg	25 000
Spindle speed range	min¹	40-10 000

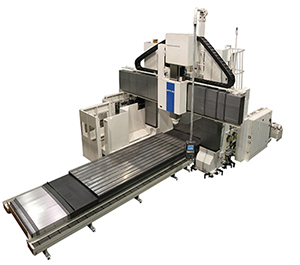

MPC-2650EII

Main Specification(Standard)		MPC-EII
X-axis travel	mm	4 500-9 000
Y-axis travel	mm	2 900-4 400
Z-axis travel	mm	900
W-axis travel (Crossrail movement)	mm	1 000 [1 500]
Height	mm	1 730 [2 235]
Distance between both side of frame	mm	2 100 - 3 600
Table Working Surface	mm	1 800 X 4 00 -3 100 X 8 000
Maximum load on table	kg	20 000-40 000
Spindle speed range	min¹	30-4 000 [6 000]

Horizontal Machining Centers

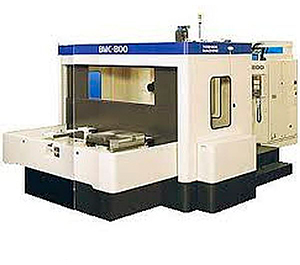

BMC-800/1000

A new horizontal machining center for guaranteed stable powerful cutting and precision type machining.All axes (X, Y and Z) employ linear roller guides for added rigidity and compliance of the feed system to assure stable high speed and high accuracy precision-type positioning and contouring operations over the life of the machine.

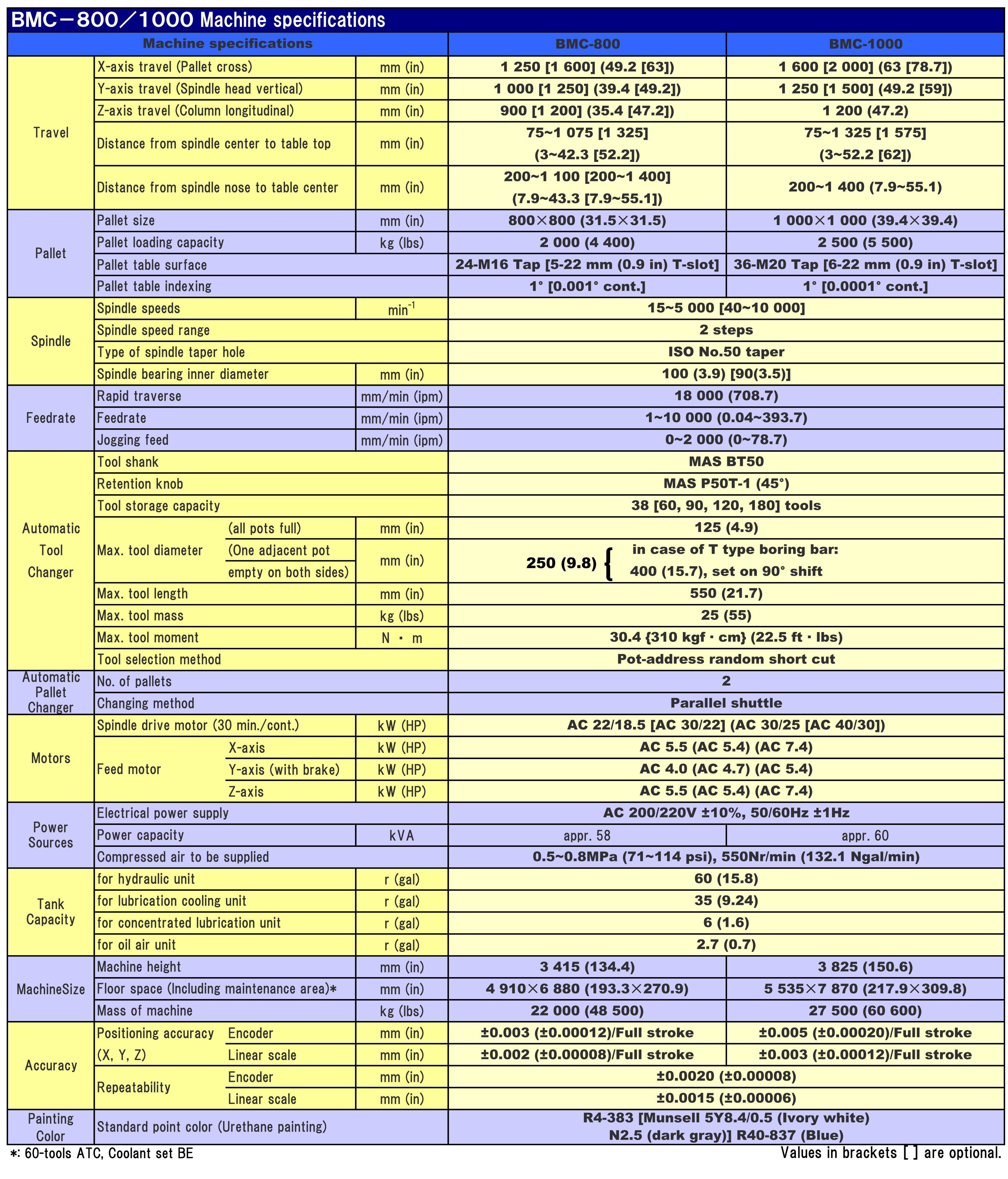

Machine specifications (GIF/785KB)
