Everox

EVEROX specializes in manufacturing different types of solid and reliable conventional high-speed lathe, cnc lathe, bed type milling machine, cnc milling machine, cnc machining center and other related machine tools. Over ten years, our experienced engineer team has built each machine with the greatest passion and highest craftsmanship standard. In addition, every Everox machine has to pass the strictest inspection before delivery.

  • CNC Flat Bed Heavy Duty Precision Lathe
  • Cnc Screw Cutting Machines
  • CNC BTA Deep Hole Drilling Machines

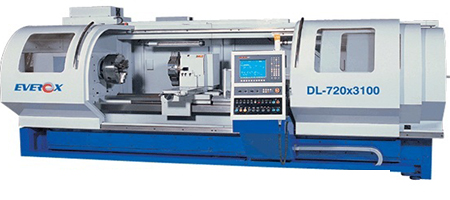

    • CNC Flat Bed Heavy Duty Precision Lathe

    Specifications

    MODEL Unit EL-600 EL-720
    WORKING CAPACITY
    Swing over bed mm 610 720
    Swing over cross slide mm 370 480
    Swing over gap mm 880 990
    Length of gap from spindle nose mm 345
    Length of gap mm 205
    Distance between centers mm 1100 / 1600 / 2100 / 3100 / 4100 / 5100 / 5600
    Width of bed mm 410
    HEADSTOCK
    Spindle bore mm Φ 83 / Φ 105
    Spindle nose A2 - 8 or D1 - 8
    Rance of spindle speed rpm 3 steps infinitirely variable spindle speed 34~1700 (motor 4P) / 24~1200 (motor 6P opt.)

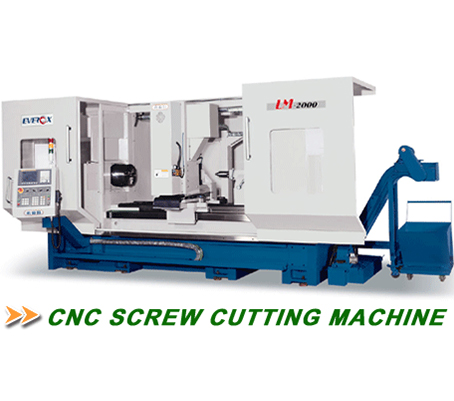

    CNC Screw Cutting Machines

    Specifications

    Item / Model Unit LM-1500 LM-2000 LM-3000 LM-4000 LM-5000
    Swing over bed mm
    720
    Swing over cross slide mm
    370
    Distance between mm 1600 2100 3100 4100 5100
    Spindle bore mm Φ 115 Φ 105 / 160 （ opt. ）
    A axis speed min
    3000
    A axis servo motor Nm
    20
    Milling head
    NT #50
    Main motor kw
    11 / 15
    Spindle speed rpm
    40 ~ 4000
    Y axis travel (manual) mm
    50

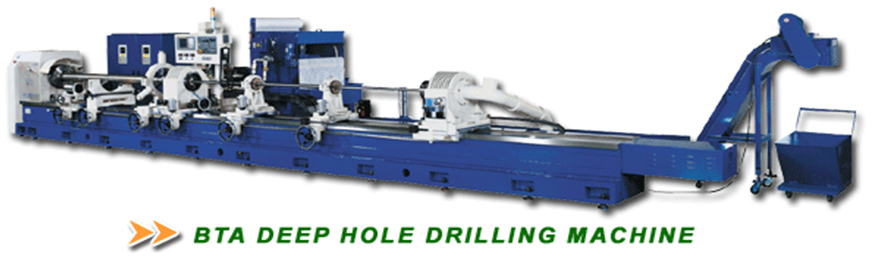

    CNC BTA Deep Hole Drilling Machines

    Specifications

    Item / Model Unit ELA-2000 ELA-3000 ELA-4000 ELA-2000 ELA-3000 ELA-4000 ELA-5000 ELA-6000
    Hole dia mm Φ 30 ~ Φ 120 Φ 100 ~ Φ 200
    Max. depth mm 2000 / 3000 / 4000 2000 / 3000 / 4000 / 5000 / 6000
    Spindle motor kw 50 with inverter 75 with inverter
    Drill axis motor (Z) kw 4.0 ( Gaer reducer 1:10 ) 7.0 ( Gaer reducer 1:10 )
    High pressure pump 400 ~ 750 /min25 700 ~ 1000 /min20
    Max. spindle speed rpm
    100~1100
    Feed rate mm/min
    1 ~200
    Rapid traverse mm/min
    3000
    Z axis ball screw mm
    Φ 80 x P = 10 x C7
    Swing over bed mm
    770
    More Details
